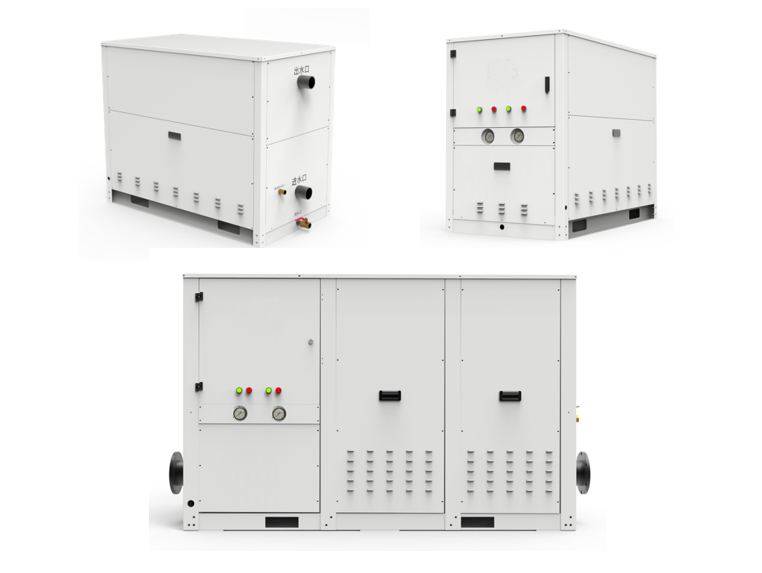

ILIKE Water Pump Kits Specifications
| Model | ILC012Y029X | ILC025Y032X | ILC040Y030X | ILC050Y029X | ILC060Y033X | ILC070Y032X | ILC100Y033X | ILC120Y030X | ||
| Power Supply | V/Ph/Hz | 380-415V/3Ph/50Hz | ||||||||
| Circulating pump | Nominal flow | m³/h | 12 | 25 | 40 | 50 | 60 | 70 | 100 | 120 |
| Rated lift | m | 29 | 32 | 34 | 29 | 33 | 32 | 33 | 30 | |
| Rated power | kw | 1.8 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 15 | |
| Qty. | PCS | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Configuration mode | One duty+one standby | |||||||||
| Expansion tank | L | 12 | 24 | 35 | 80 | 80 | 80 | 100 | 100 | |
| Connection diameter | Pipes connections | Flanges | ||||||||
| Pipes size | DN50 | DN65 | DN80 | DN100 | DN100 | DN125 | DN125 | DN125 | ||
| Quick water feed | External thread | / | / | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | |
| Auto water feed | External thread | DN15 | DN15 | DN15 | DN15 | DN15 | DN15 | DN15 | DN15 | |
| Sewage drain | Internal thread | DN15 | DN15 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | |
| Start type | Direct start | Start-delta start(Y-Δ) | ||||||||
| Water pump operating mode | Manual / Link | |||||||||
| Water pump switching mode | Manual (Auto model optional) | |||||||||
| Fault signal output | Alarm Light | |||||||||
| Water flow switch | Optional | |||||||||
| Dimensions | L/W/H | mm | 1400*800*1157 | 1400*800*1157 | 1550*1000*982 | 2009*1003*1305 | 2009*1003*1305 | 2009*1003*1305 | 2009*1003*1305 | 2009*1003*1305 |
| Weight | KG | 130 | 160 | 300 | 350 | 500 | 500 | 570 | 570 | |
| Class code | Category Ⅰ | |||||||||
| IP Code | IPX4 | |||||||||
| Protective measures | Continuous protection, overload, undervoltage protection | |||||||||
