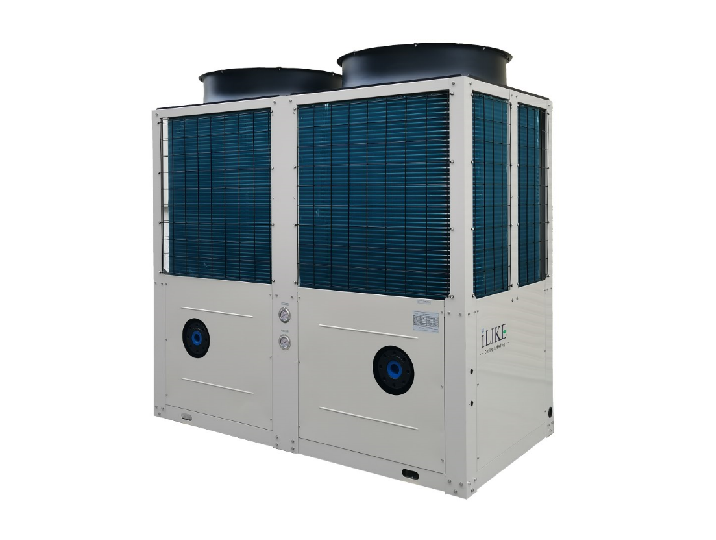

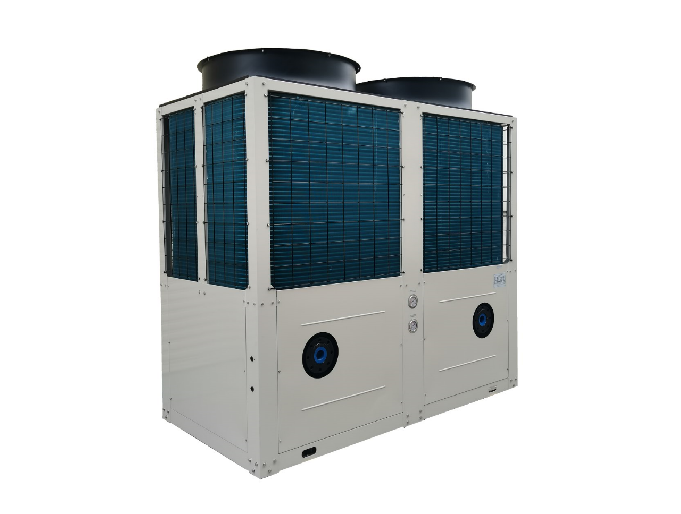

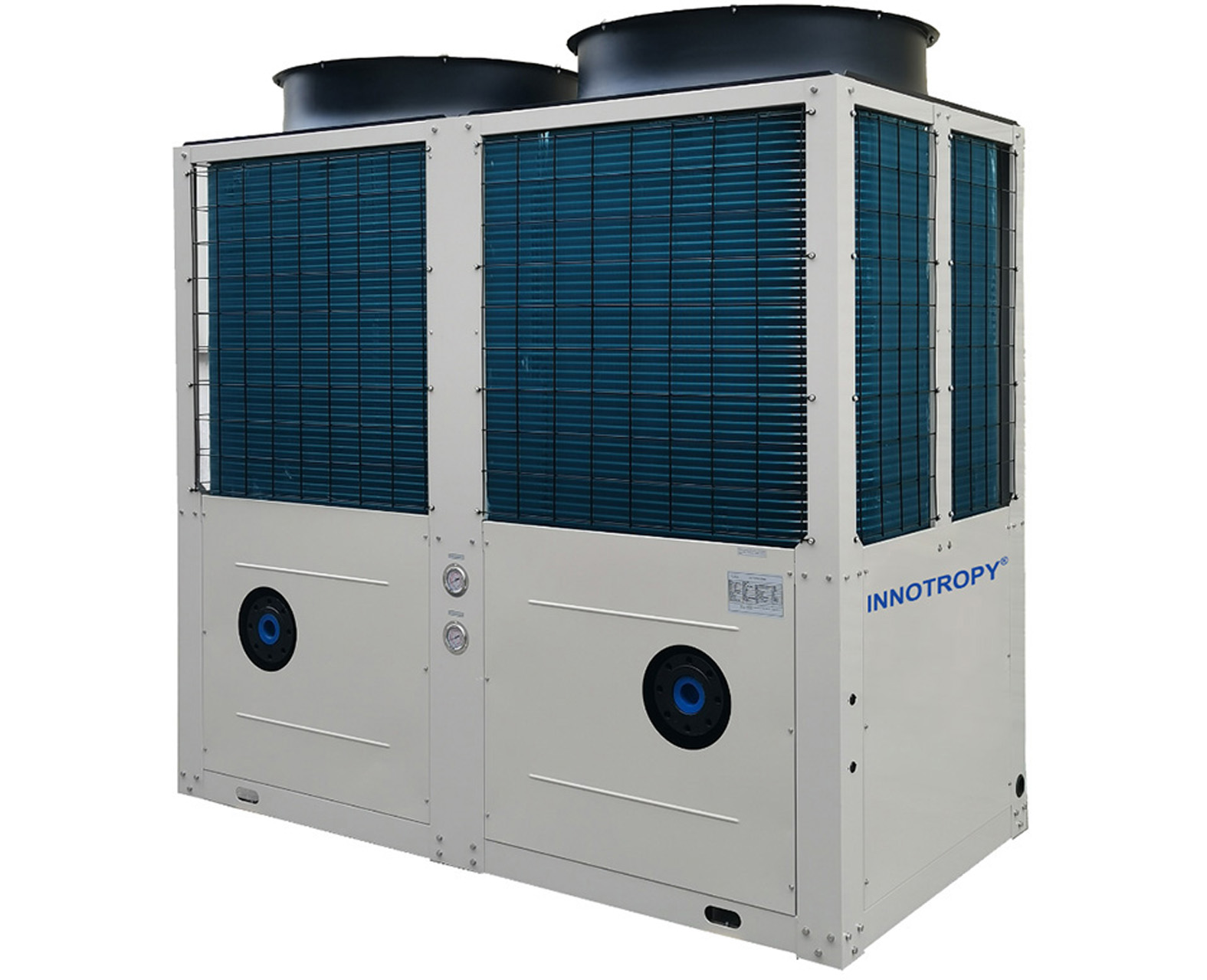

Air Cooled Chiller 65KW/130KW/260KW
-
Standard :
- 1. Modular design ,one wired controller control max 8 nos chiller ;
- 2. Shell tube water heat exchanger;
- 3. Copeland scroll compressor;
- 4. Two speeds condensing fan ;
- Optional :
- 1. T3 climate chiller ;
- 2. Inverter compressor /EC fan ;
- 3. Winter cooling function;
- 4. 7' touch screen;
- 5. Total heat recovery ;
- 6 .Water pump ;
- 7. EVI compressor for better heating performance in low ambient temperature
-
ILIKE Air Cooled Scroll Chiller Specifications
| Model | Cooling only | LKAC-250C | LKAC-500C | LKAC-1000C | ||
| Heat Pump | LKAC-250HP | LKAC-500HP | LKAC-1000HP | |||
| Cooling | Rated Capacity | kW | 65 | 130 | 260 | |
| Rated Power | kW | 20 | 40 | 80 | ||
| EER | W/W | 3.25 | 3.25 | 3.25 | ||
| Heating | Rated Capacity | kW | 73 | 146 | 292 | |
| Rated Power | kW | 22 | 44 | 88 | ||
| COP | W/W | 3.32 | 3.32 | 3.32 | ||
| Capacity adjustment | % | 0/50/100 | 0/50/100 | 0/25/50/75/100 | ||
| Rated Running Current | A | 40 | 75 | 150 | ||
| Max. Input Current | A | 50 | 100 | 200 | ||
| Power supply source | 380V/50HZ/3PH | |||||
| Electric shock resistance | Ⅰ | |||||
| Level of protection | IPX4 | |||||
| Refrigerant | R410A | |||||
| Cooling operation climate | ℃ | 5~48 | ||||
| Heating operation climate | ℃ | -15~48 | ||||
| Pipe diameter | DN65（Flange） | DN75（Flange） | DN100（Flange） | |||
| Circulating water | m3/h | 11.2 | 22.4 | 44.7 | ||
| WPD | kPa | 45 | ||||
| Compressor Type | Scroll | |||||
| Compressor Qty | 2 | 2 | 4 | |||
| Air Discharge Direction | Top discharge | |||||
| Motor Type | Low noise axial fan | |||||
| Air Flow | m3/h | 13000x2 | 24000x2 | 24000x4 | ||
| Noise level | dB（A） | ≦62 | ≦68 | ≦72 | ||
| Unit weight | kg | 580 | 900 | 2000 | ||
| Dimension | Length | mm | U type 2000 | 2210 | V type 2400 | |
| Width | mm | 1055 | 1135 | 2200 | ||
| Height | mm | 1900 | 2180 | 2250 | ||
Note：
1.Nominal cooling capacity test condition : water inlet/outlet temperature are 12°C/7°C ,ambient temperature 35°C.
2.Nominal heating capacity test condition : water inlet/outlet temperature are 40°C/45°C ,ambient temperature 7°C/6°C.
3.The specifications in the table are subject to change due to changes in the product design of the manufacturer without prior notice.
